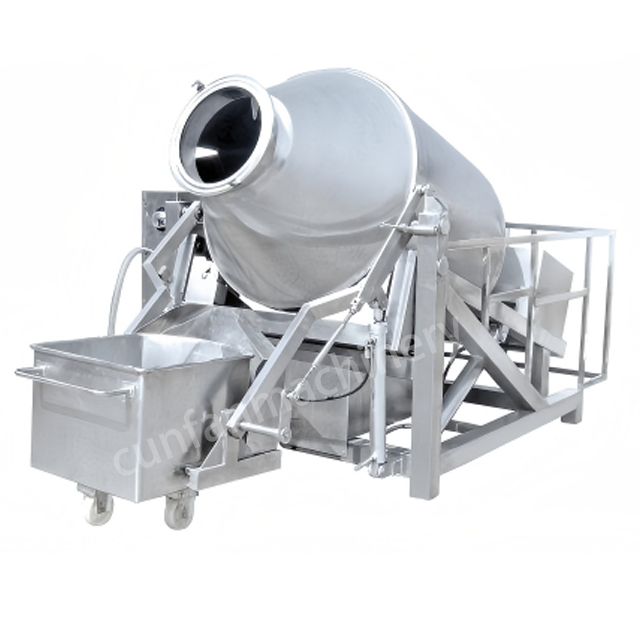

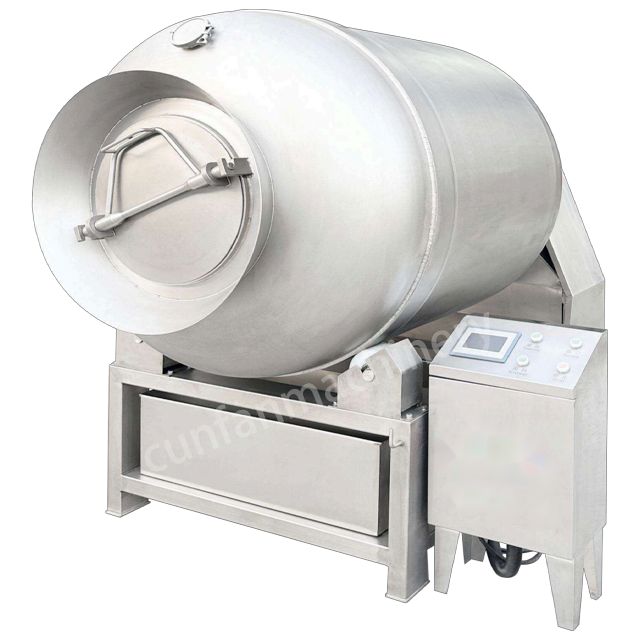

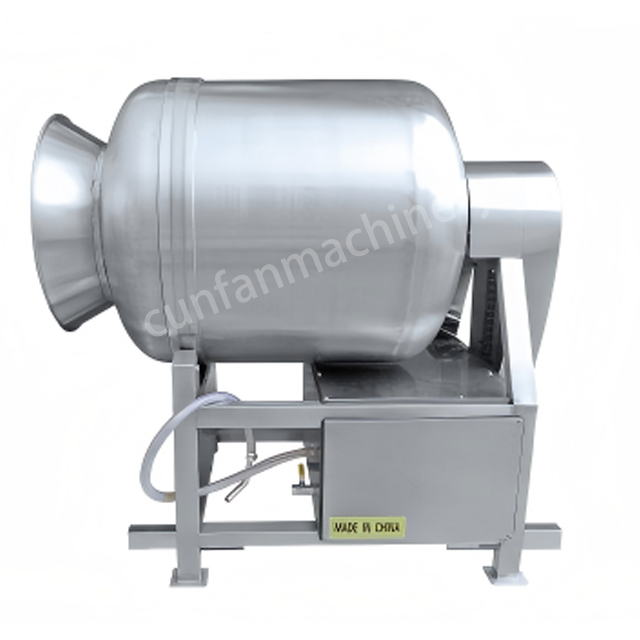

Vacuum Tumbler Machine

The arc-shaped paddles are uniquely designed to evenly distribute the marinade without damaging the surface of the product, thus improving the tenderness and appearance of the product;
The drum speed can be adjusted by variable frequency, and the total rolling time, intermittent rolling time, and vacuum rolling time can be set arbitrarily;
Automatic discharging can be achieved,which can reduce labor intensity and improve productivity;
It has functions such as continuous, intermittent rolling, and reverse rolling discharging;The whole is made of 304 stainless steel, which meets the hygiene standards of food machinery;
The round head has a reasonable structure, large rolling space, stable operation,low noise, reliable performance, simple operation, and high equipment use efficiency.

Quantity:
Availability:





Inquire Add to Basket

Model:
CF-60L/200L/400L/600L/800L/1500L/2800L
Brand:
CUNFAN

Product Description

肉类24

Model	Material	Volume(L)	Capacity(kg/time)	Power(kw)	Rotate speed(rpm)	Vacuum(MPa)	Weight(kg)	Dimension( m m )
CF-60L	SUS 304	≈60	15-20	0.57	3-16	-0.06~-0.08	≈90	920410840
CF-200L	SUS 304	≈200	65	1.5	3-15	-0.06~-0.08	≈200	13106201100
CF-400L	SUS 304	≈400	100	1.85	Fixed speed / Variable frequency speed control	-0.06~-0.08	≈300	12808201380
CF-600L	SUS 304	≈600	200	2.25	Fixed speed/ variable speed	-0.06~-0.08	≈330	133010201575
CF-800L	SUS 304	≈800	300	2.25		-0.06~-0.08	≈430	149010201575
CF-1500L	SUS 304	≈1500	600	6.85	Variable frequency drive	-0.06~-0.08 H8	≈630	200011201680
CF-2800L	SUS 304	≈2800	1000	9.35	variable speed	-0.06~-0.08	≈1160	256014302100

Improved production efficiency Stable operation Low noise Easy operation

Vacuum Tumbler Machine
