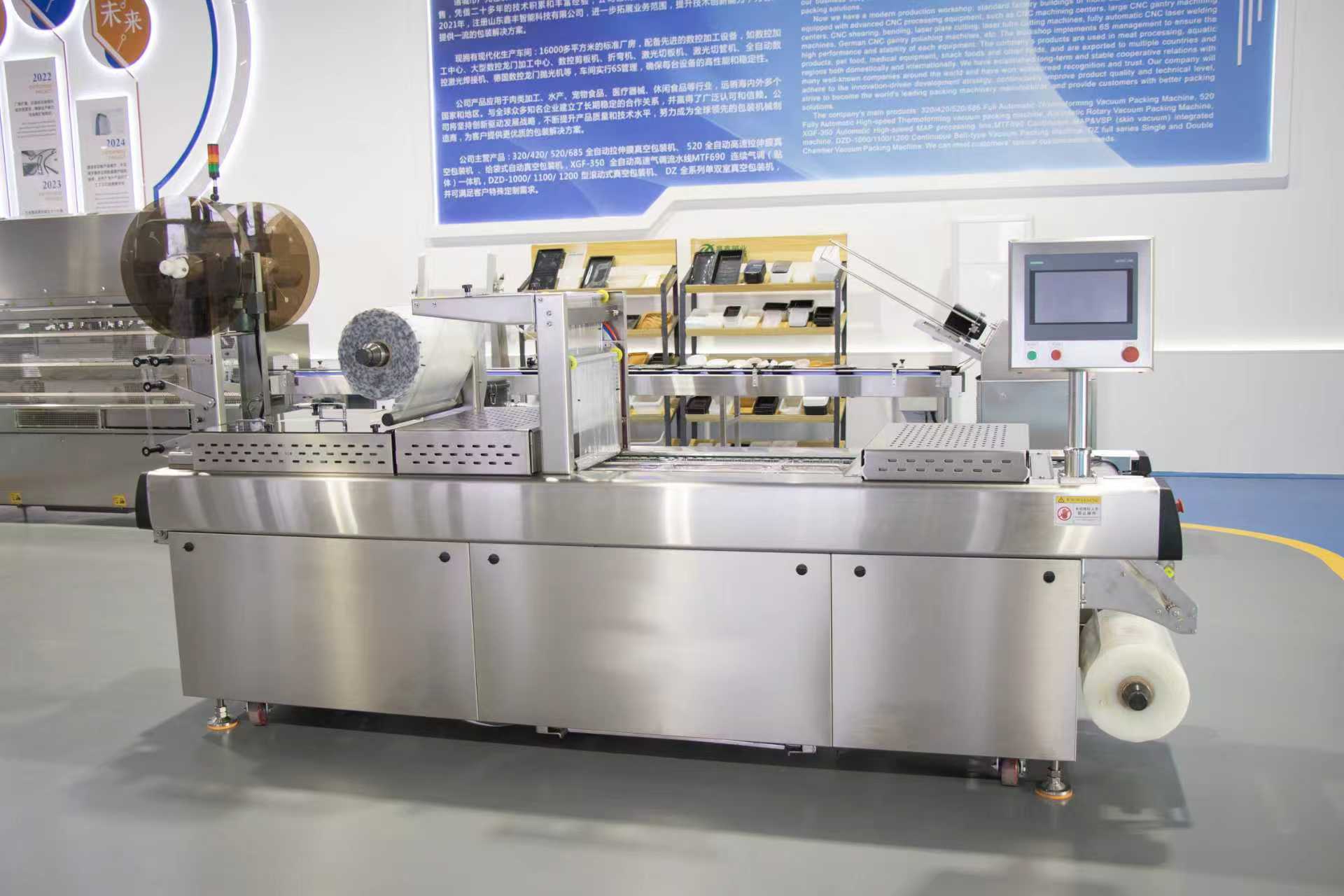

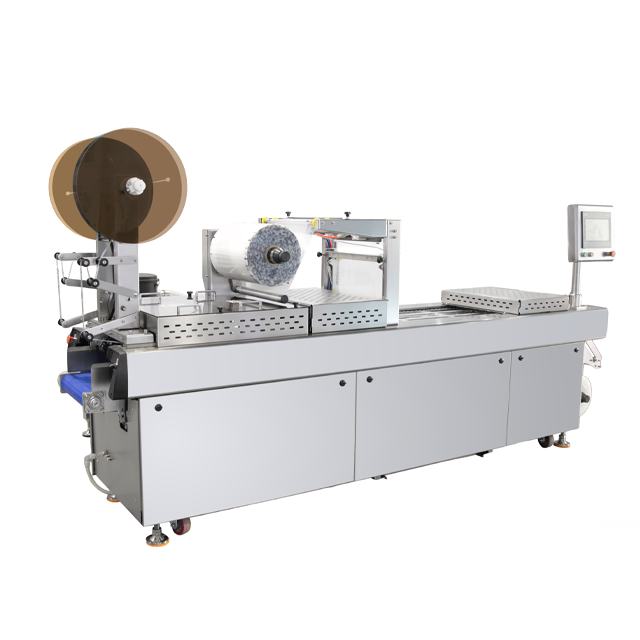

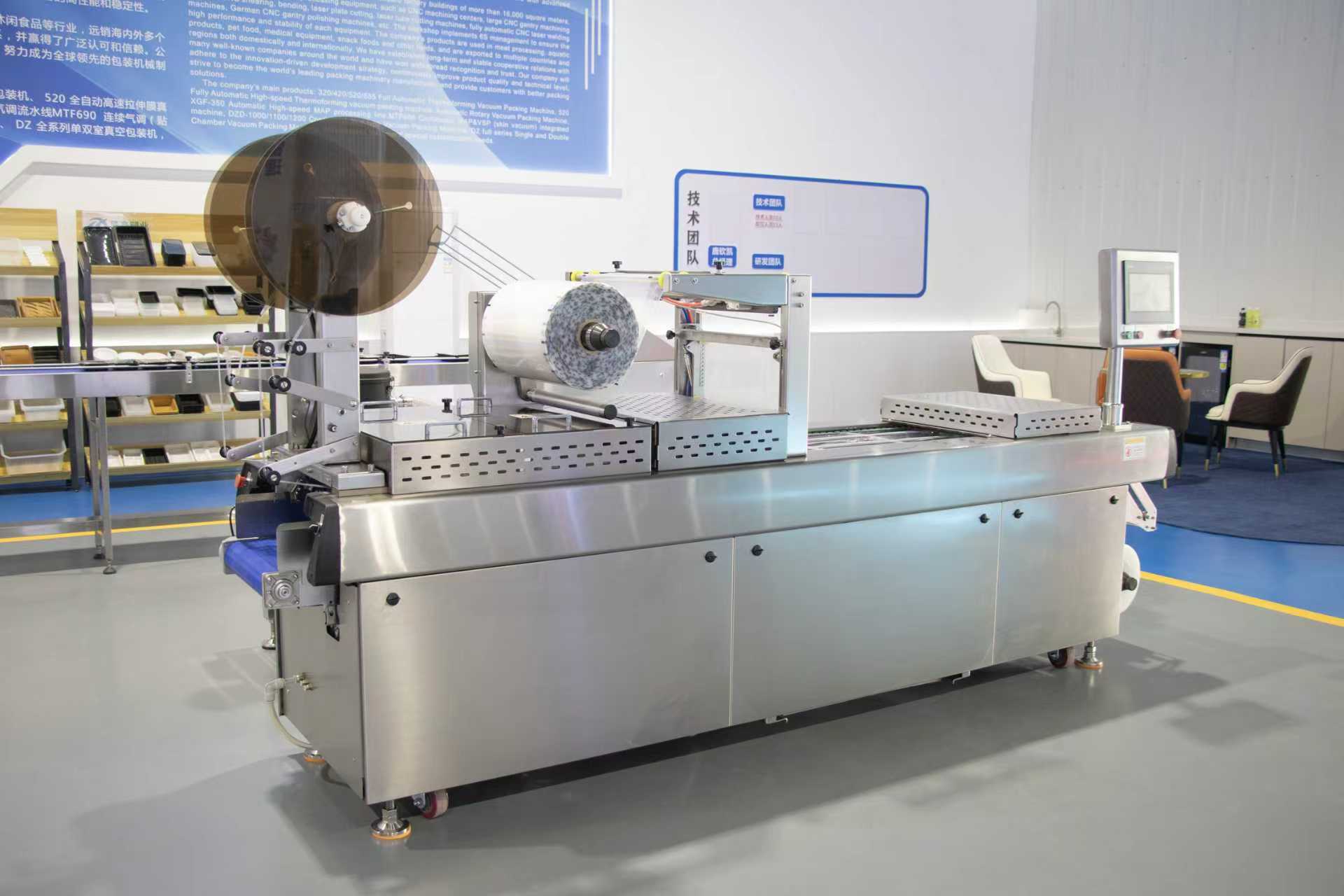

Small Stretch Film Vacuum Packaging Machine

【1】Machine Control System: Siemens programmimg controller; Siemens 10-inch color simulated touch screen; Schneider servo frequency conversion drive system; French Schneider electrical appliances; Taiwan AirTAC cylinders; SMC solenoid valves and other international top-level configurations.
【2】Film Tracing：Adopts servo control for high-speed and high-precision positioning of the film movement design. Adopts imported Germany SICK photoelectric tracking system. The system can cover color films to ensure the alignment of logo patterns. Adopts Germany IWIS 10B 304 stainless steel film - tracing chains. The machine is equipped with power-off memory function.
【3】Mold：Upper and lower split type combined aluminum alloy molds,Hard anodizing treatment. Easy to disassemble and assemble, high strength, corrosion resistant, and meet food grade requirements.
【4】Frame: Precision milled on a large scale gantry milling machine CNC machining center, with a 9-meter long assembly platform, which can prevent the frame from tilting during the assembly process.
【5】Distribution Box and Overall Protection made of SUS304 stainless steel, easy to clean.
【6】Vacuum Pump: Internationally renowned brand BUSCH food grade vacuum pumps are available.
【7】Forming and Heat-sealing: The lifting structure of the forming mold and heat-sealing mold adopts a servo independent lifting and self locking system. The aluminum alloy casting integrated heating plate has a more uniform heating temperature and a longer service life. The heating plates in both the forming and heat-sealing chambers adopt a heating tube embedded structure, facilitating subsequent maintenance and replacement.
【8】Cross Cutting knife：The cross cutting knife and punching knife are single-blade movable and adjustable independent punching systems. Controlled by PLC program,the cross cutting knife and punching knife can be set to open or close on the touch screen.
