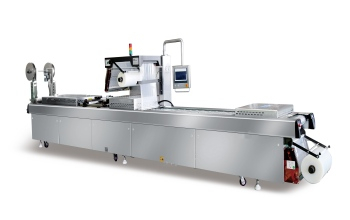

Automatic Stretch Film Vacuum Packaging Machine
• Equipped with imported SIEMENS color simulation touch screen. Push pull design makes operation more convenient.
• According to user product requirements, an imported Panasonic brand servo controlled coding device can be equipped.
• The upper and lower separated mold has high strength, corrosion resistance, and a more reasonable design. Easy and fast loading and unloading.
• Adopting independent cross cutting, the single blade can be moved and adjusted. Computer centralized control, single blade on/of can be select ed on the touch screen.
• Adopting imported Panasonic brand MDME102GCG and 152GCG for high-speed and high-precision film running design.
• Choose HH or (REGINA, Italy) wide open chain film clamp. Ensure clamping force, precise transmission, and long service life.
• Weuse German imported BUsCH, LEYBOLD, and RIETSCHLE vacuum pumps, which have the characteritics of fast pumping speed, high vacuumdegree, and long service life.
• The temperature can be set on the touch screen according to product requirements.
• Equipped with a BANNER R58 high-sensitivity tri color photoelectric sensor from the United States, it can accurately locate the position of each pattern on the product. Beautify the appearance of the product and improve its level.
• The main beam of the packaging machine is made of one-time extruded aluminum alloy profiles, which have the characteristics of high strengthgood corrosion resistance, and low deformation.
• Select SiMc solenoid valves and vacuum solenoid valves imported from japan. Beautiful appearance,low gas consumption,low noise, durable, effectively improving equipment performance and service life.
• Waste recycling adopts suction buckets, making waste film recycling more concise and convenient.
• Both the upper and lower films adopt an induction type automatic braking and tensioning system, and are eguipped with a horizontal adiustment handle to adiust the running direction of the packaging film at any time.
• The whole machine is equipped with power phase loss, reverse phase, high voltage, low voltage, and leakage protection systems, which are easy tooperate and adiust.
• The molding chamber, heat sealing chamber, cross cutting knife, and longitudinal cuting knife are all equipped with safety switches and protec tive covers. When there is a malfunction, they will automatically stop and display the cause of the malfunction.
