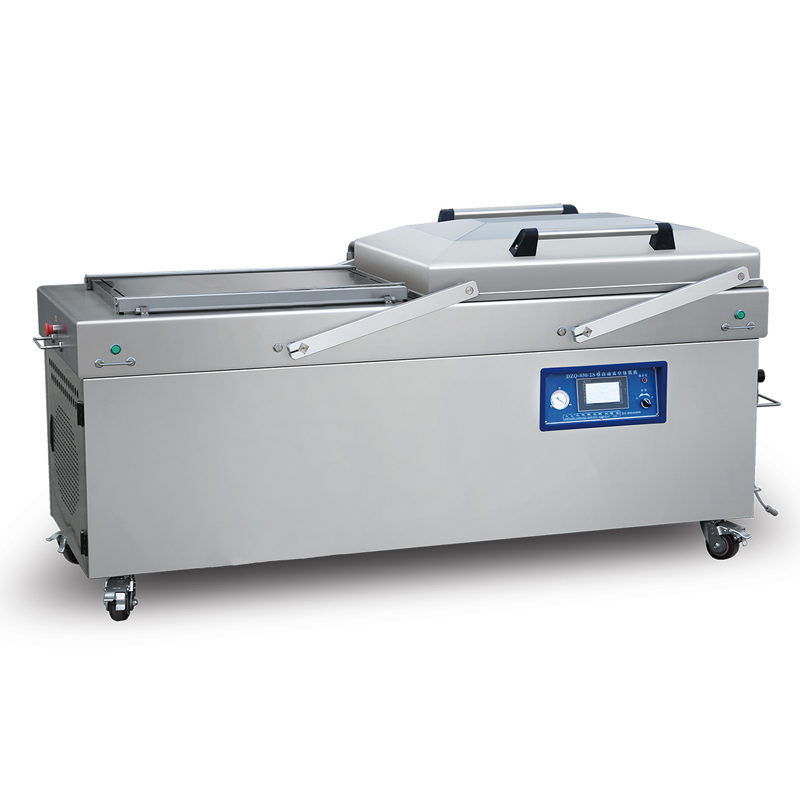

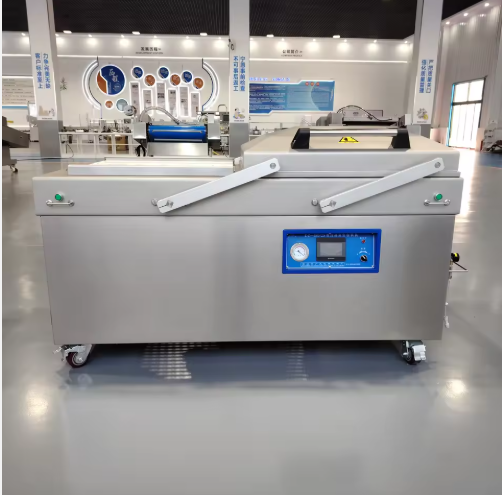

CFZK-850/2S CFZK-680/2S CFZK-600/2S
CUNFAN
Frame stability structure:
Our frame is box Structure and use additionally reinforced with triangle iron to ensure the stability of the equipment frame, not easy to deform and long service life
Transformer
We use insulating plates to isolate electrical appliances and transformers from the frame. If damaged, it will not cause electric shock and protect the safety of workers.
Vacuum pump
Chamber bedplate
6 stiffeners strengthen the workroom bedplate, reducing the deformation of the bedplate and making it more stable.Welded by the welding robot,no deformation of the workroom.
Swing arm:
Square swing arm, which is more stable. If other methods are adopted, problems such as studio deviation, air leakage and poor vacuum pumping effect will occur after a long time.
Control panel
