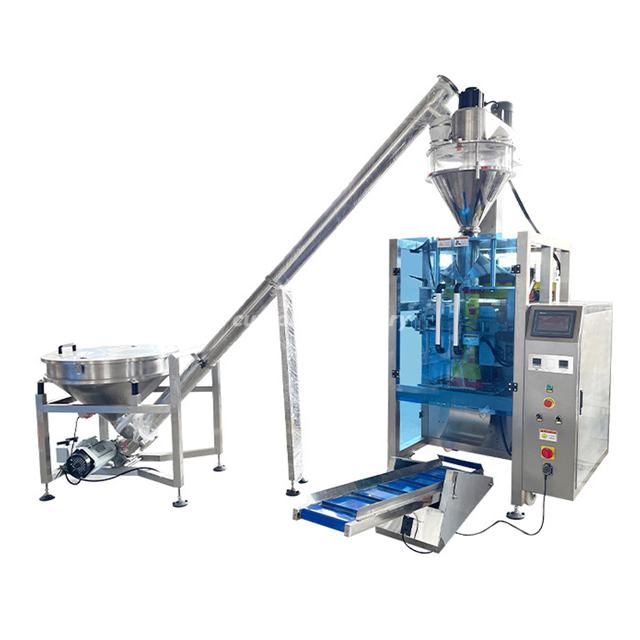

Collar-Type Vertical Packaging Machine

PLC computer control system, operation is more stable, can not stopto adjust any parameters.

Use servo motor to pull film, positioning is more accurate.

Independent temperature control system, accuracy up to +1°C.

Independent control of transverse and longitudinal sealing temperature,which can better apply to various composite film, PE film and other packagingmaterials.

Diversified packaging styles, back seal, insert Angle, bag, punchingand so on.

Bag-making, sealing, packaging and printing date are completedin one time.

Quantity:
Availability:





Inquire Add to Basket

Model:
CF-320/420/520/620/720/820/920/1200
Brand:
CUNFAN

Product Description

Model	CF-320	CF-420	CF-520	CF-620	CF-720	CF-820	CF-920	CF-1200
Bag With	40-150 mm	60-200 mm	80-250 mm	100-300 mm	100-350 mm	160-400 mm	100-570 mm	200-580 mm
Bag length	50-200 mm	20-300 mm	80-380 mm	80-450 mm	80-470 mm	90-500 mm	100-570 mm	100-600 mm
Max roll film width	320mm	420mm	520mm	620mm	720mm	820mm	920mm	1200mm
Film Material	OPP/CPP/CE MST/PET,etc,厚度要求0.04mm-0.08mm Heat sealing complex film e.g. OPP/CPP/CE MST/PE/PET,etc Film thickness:0.04-0.08mm
Speed	5-60 Packs/min(B/M)	5-55 Packs/min(B/M)	5-55 Packs/min(B/M)	5-50 Packs/min(B/M)	5-50 Packs/min(B/M)	5-45 Packs/min(B/M)	5-40 Packs/min(B/M)	5-30 Packs/min(B/M)
Power Supply	220V 50/60Hz
Power Supply	1.5kw	2kw	2.5kw	2.8kw	3.2kw	4.2kw	5.2kw	6.2kw
Dimension(mm)	L1350* W1200* H1450	L1350* W1200* H1450	L1500* W1140* H1450	L2230* W1450* H2000	L2230* L2500* W1450* W1600* H2000 H2200		L2500* W1600* H2200	L2500* W1600* H2200

Related Products

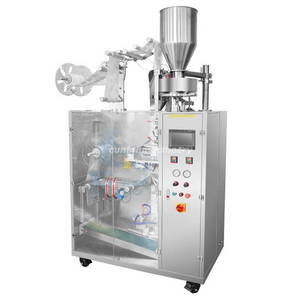

Automatic Inner And Outer Pouch Filter Paper Drip Coffee Bag Packaging Machine

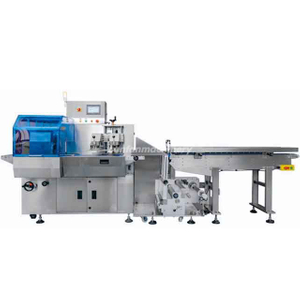

Pillow Packaging Machine

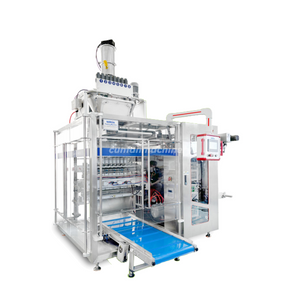

Vertical Packaging Machine
